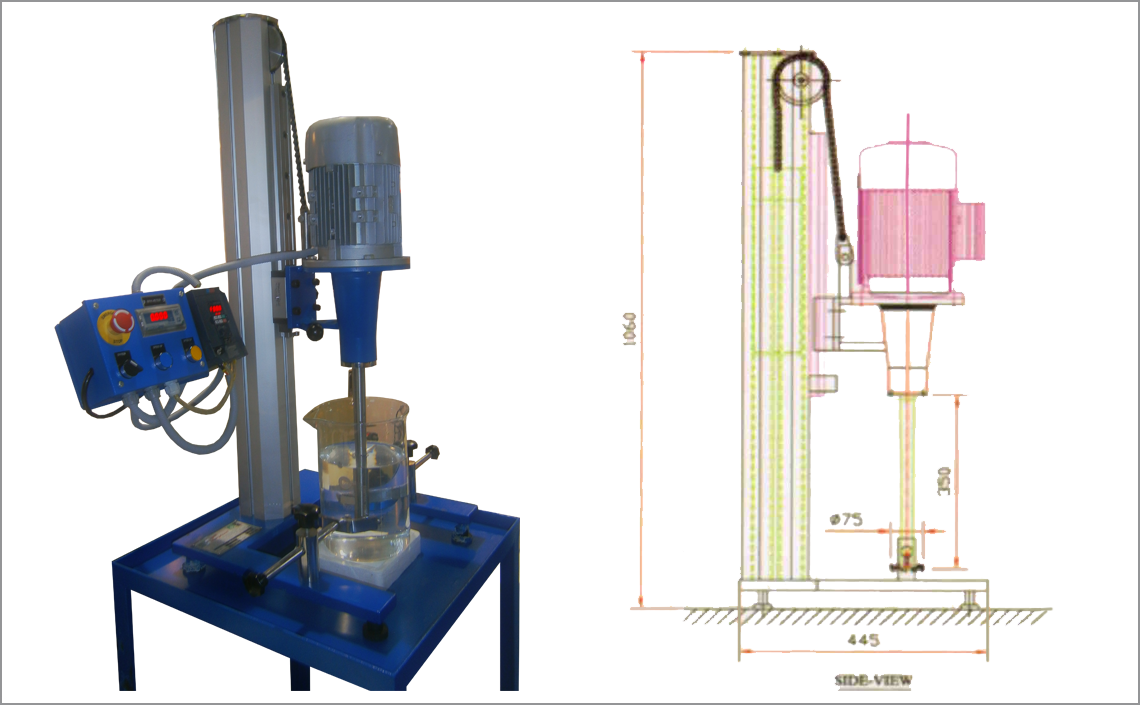

Table model for pre-mixing, dispersion and ready mixing of batches upto appox. 10 ltrs.
The dissolver is provided with a reputed make motor of 1 HP or 2 HP flame / non flame proof.
The stirring shaft is made of stainless steel and provided with a mounting of the mixing unit.
The speed of the stirring shaft is infinitely adjusted during operation from appox. 0 to 4500 RPM. The actual speed can be read from a display on the panel with the help of a RPM meter.
The dissolver comes with a control panel in which is housed the A.C. drive.
• Shaft made of stainless steel.
• 2 plates cowle's made of acid resistant stainless steel 75mm & 100mm of standard diameters.
• Manual lifting and lowering operated by means of pushing the lever up and down to height 350mm.
• Container fastening devise for container from 100mm to 250mm.
• Protective tube for the turbine shaft made of Teflon, mounted on the casing.
